Standard Version for C Massecuite

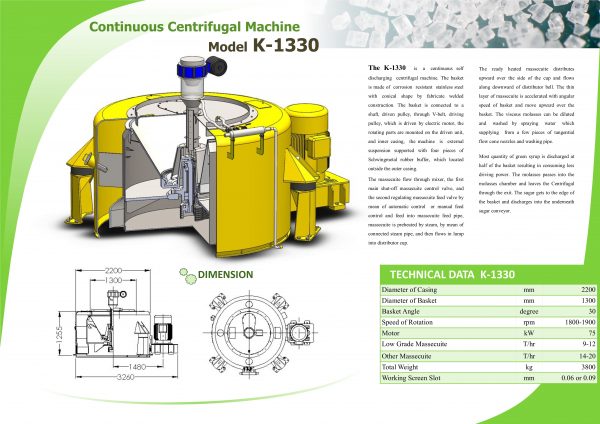

The K-1330 is a self-discharging centrifugal machine that runs continuously. The basket is fabricated welded from corrosion-resistant stainless steel and has a conical shape. The basket is attached to a shaft, which is driven by an electric motor, via a V-belt, and a driving pulley. The rotating parts are positioned on the driving unit and inner casing, and the machine is supported externally by four rubber buffers that are situated outside the outer casing.

​The massecuite flow through mixer, the first main shut-off massecuite control valve, and the second regulating massecuite feed valve by means of automatic control or manual feed control and feed into massecuite feed pipe, massecuite is preheated by steam, by means of connected steam pipe, and then flows in a lump into distributor cup.

​The ready heated massecuite distributes upward over the side of the cup and flows downward of the distributor bell. The thin layer of massecuite is accelerated with the angular speed of the basket and moved upward over the basket. The viscous molasses can be diluted and washed by spraying water which supplying from a few pieces of tangential flow cone nozzles and washing pipe.

Because the majority of the green syrup is discharged at half of the basket, less driving power is required. The molasses enters the molasses chamber and exits through the exit of the Centrifugal. When the sugar reaches the basket’s edge, it falls into the sugar conveyor beneath it.

​

Capacity

• Low-grade massecuite: 9 – 12 t/hr
• Other massecuite: 14 – 20 t/hr
• Total Weight: 3800 kg
• Working Screen Slot: 0.06 or 0.09 mm

Specification

• Motor: 75 kW
• Basket diameter: 1300 mm
• Basket angle: 30 deg
